Spring energized seals are high-performance sealing solutions designed for demanding environments where conventional elastomer seals fail. Commonly used in aerospace, oil & gas, chemical processing, and semiconductor industries, these seals deliver reliable performance under extreme temperatures, pressures, and chemical exposure.

This article explores what spring energized seals are, how they work, their key advantages, types, and major applications.

What Is a Spring Energized Seal?

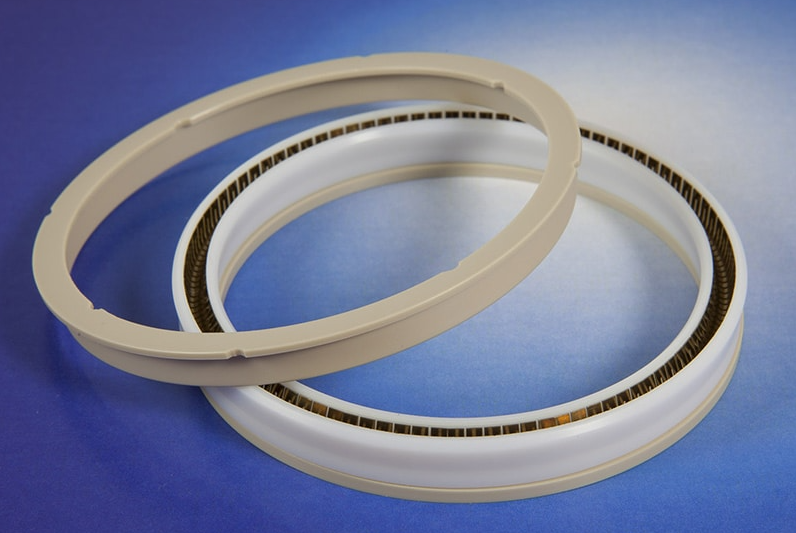

A spring energized seal is a mechanical seal that combines a polymer sealing jacket (typically PTFE or other high-performance plastics) with an internal metal spring. The spring applies constant force to the seal lip, ensuring tight contact with the sealing surface—even when pressure is low or fluctuating.

Unlike traditional O-rings that rely solely on material compression, spring energized seals maintain sealing integrity through continuous spring force, making them ideal for critical and precision applications.

How Spring Energized Seals Work

The internal spring provides a consistent radial or axial load against the mating surface. This ensures:

• Effective sealing at low or zero pressure

• Compensation for wear, misalignment, or thermal expansion

• Reliable performance in dynamic and static conditions

When system pressure increases, it further enhances the sealing effect by pushing the seal lip tighter against the surface.

Key Components of Spring Energized Seals

1. Sealing Jacket

The outer jacket is usually made from:

• PTFE (Polytetrafluoroethylene)

• Filled PTFE (glass, carbon, graphite, bronze)

• PEEK or UHMWPE (for specialized applications)

These materials offer excellent chemical resistance, low friction, and high temperature stability.

2. Energizing Spring

The metal spring is commonly manufactured from:

• Stainless steel

• Elgiloy

• Inconel or Hastelloy (for corrosive or high-temperature environments)

The spring type determines how the seal behaves under different pressures and motions.

Types of Spring Energized Seals

1. Cantilever Spring Seals

• Best for dynamic applications

• Low friction and wear

• Ideal for rotary and reciprocating motion

2. Helical Coil Spring Seals

• Uniform load distribution

• Excellent for static sealing

• Works well in vacuum and cryogenic conditions

3. V-Spring (Canted Coil) Seals

• High sealing force

• Suitable for high-pressure applications

• Handles wide pressure variations

Advantages of Spring Energized Seals

Spring energized seals offer several benefits over traditional sealing solutions:

• Wide temperature range (from cryogenic to over 300°C)

• Excellent chemical compatibility

• Low friction and minimal wear

• Effective sealing at low or zero pressure

• Long service life

• Suitable for vacuum and high-pressure systems

These features make them a preferred choice in critical applications where seal failure is not an option.

Common Applications

Spring energized seals are used across multiple industries, including:

Aerospace

• Hydraulic systems

• Fuel control units

• Actuators and valves

Oil & Gas

• Downhole tools

• Pumps and compressors

• High-pressure valves

Chemical Processing

• Reactors and mixers

• Corrosive fluid handling equipment

Semiconductor & Electronics

• Vacuum chambers

• Wafer processing equipment

• Cleanroom machinery

Medical & Pharmaceutical

• Sterilization equipment

• Precision pumps and valves

Spring Energized Seals vs. O-Rings

Choosing the Right Spring Energized Seal

When selecting a spring energized seal, consider:

• Operating temperature and pressure

• Chemical exposure

• Dynamic or static motion

• Groove design and space constraints

• Regulatory or industry standards

Proper material and spring selection ensures optimal sealing performance and durability.

Conclusion

Spring energized seals are advanced sealing solutions engineered for extreme and demanding environments. With their unique combination of a high-performance polymer jacket and an internal energizing spring, they provide consistent, reliable sealing where conventional seals fall short.

Whether used in aerospace, oil & gas, chemical processing, or high-precision manufacturing, spring energized seals offer superior performance, longevity, and peace of mind for critical applications.
